Choosing the right van can have a significant impact on how efficiently your business operates. When the conversation turns to medium and large vans for commercial use, the Renault Master always features prominently. It’s no surprise, considering its reputation for robust reliability, adaptability, and thoughtful design. But one area where the Renault Master truly stands out is in its dimensional versatility. With so many length, height, and drive options available, understanding its actual measurements is central to making an informed purchase.
Before looking up payloads, engine specs, or optional extras, it's the van’s core dimensions that determine whether it will fit your needs—literally and metaphorically. From tradespeople ferrying tools to logistics operators moving goods, what matters is how much space is inside, how easy it is to load, and what types of cargo it can safely accommodate.
Recognising the Variety

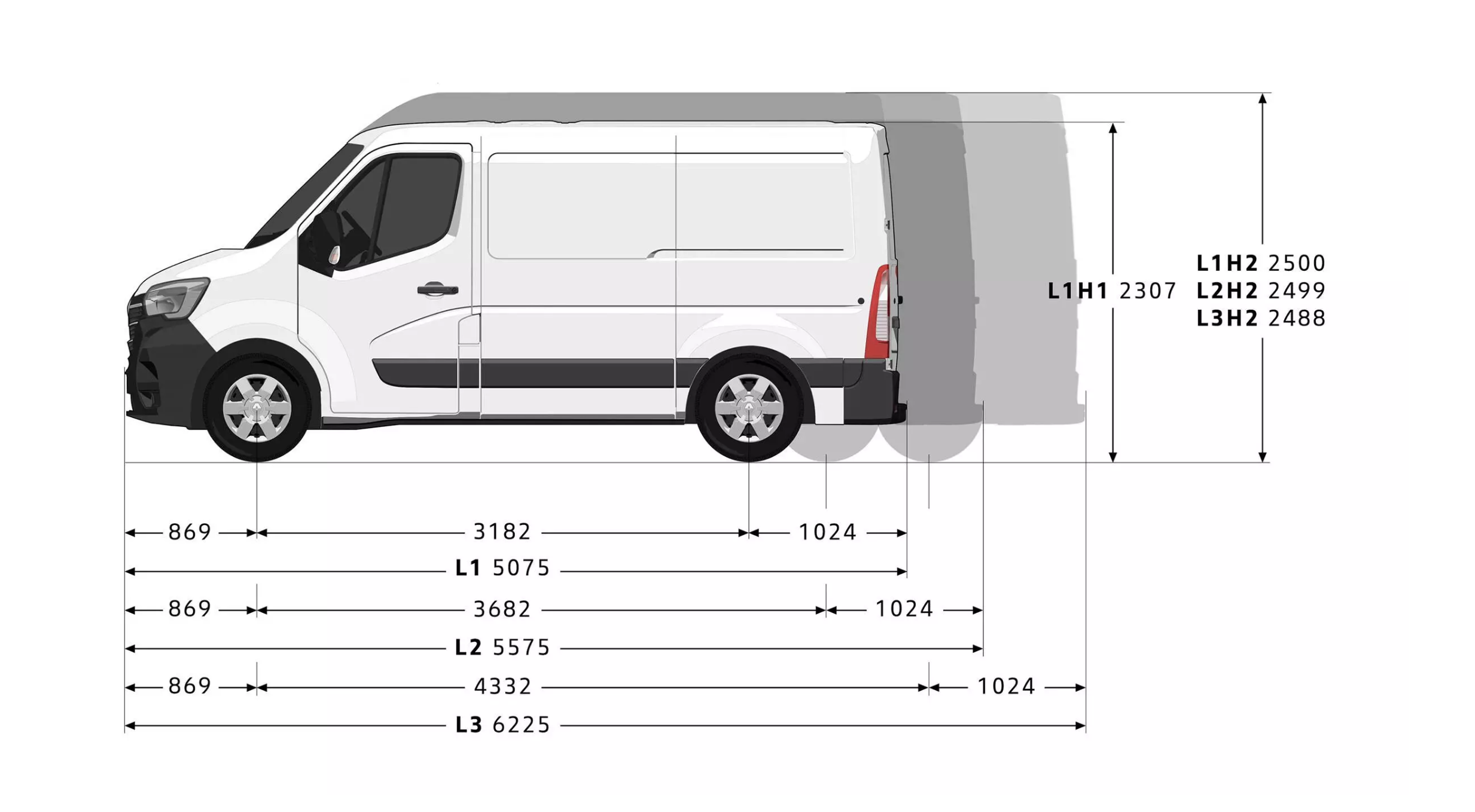

Renault Master models are differentiated not only by how they drive—front-wheel drive and rear-wheel drive—but also by a numbering system. The familiar codes, such as L1H1 or L3H3, refer to length and height, providing a concise way to identify the main physical characteristics.
Here’s how the model naming works:
L refers to vehicle length: L1, L2, L3, L4.
H refers to roof height: H1, H2, H3.
Some rear-wheel-drive variants also indicate ‘SW’ (single wheel) or ‘TW’ (twin wheel) at the rear axle.
What quickly becomes apparent is the sheer flexibility of the Renault Master line-up. Whether you need a compact urban van or a high-capacity vehicle for bulky loads, there’s almost certainly a version to match.
Panel Van Dimensions: Side-By-Side
Below is a comparative table of the core panel van variants, highlighting the effective load length, height, and some access dimensions. This gives a clearer sense of scale and suitability for varying tasks.
Variant
Drive
Length (mm)
Height (mm)
Width (mm)
Height between wheel arches (mm)
Sliding Door Width (mm)
Sliding Door Height (mm)
Rear Door Width (mm)
Entrance Height (mm)
Loading Sill Min/Max (mm)
Ground Clearance (mm)
L1H1
FWD
2583
1700
1765
1380
—
—
1580
1627
546 / 564
182
L1H2
FWD
2583
1894
1765
1380
1050
1581
1580
1627
544 / 563
174
L2H2
FWD
3083
2144
1765
1380
—
—
1580
1820
545 / 562
173
L2H3
FWD
3083
2144
1765
1380
1270
1780
1580
1820
543 / 560
172
L3H2
FWD
3733
1894
1765
1380
—
—
1580
1820
543 / 557
172
L3H3
FWD
3733
2144
1765
1380
—
—
1580
1820
542 / 555
169
L3H2 SW
RWD
3733
1798
1765
1380
1270
1684
1580
1724
674 / 696
197
L3H2 TW
RWD
3733
1798
1765
1080
1270
1684
1580
1724
706 / 724
181
L4H2 SW
RWD
4383
1798
1765
1380
1270
1684
1580
1724
682 / 704
167
L4H2 TW
RWD
4383
1798
1765
1080
1270
1684
1580
1724
701 / 717
167
L4H3 SW
RWD
4383
2048
1765
1380
1270
1684
1580
1724
680 / 702
167
L4H3 TW
RWD
4383
2048
1765
1080
1270
1684
1580
1724
700 / 715
167
Front-Wheel Drive or Rear-Wheel Drive?
The way the Renault Master delivers power to its wheels has a direct impact on its interior measurements. Front-wheel drive variants provide a low loading sill and flat load floor. This suits businesses moving lighter items needing frequent, quick access. Installers, local couriers, and city-based trades find these versions particularly convenient.
By comparison, rear-wheel drive models cater for much heavier loads, and their configuration accommodates larger payloads and, in some cases, even twin rear wheels for improved stability at maximum gross weights. There’s a trade-off in terms of loading sill height and space between the wheel arches, with the twin rear wheel models showing a narrower gap here.
At a Glance: What Sets Them Apart?
Load Lengths: Starting at just over 2.5 metres, up to more than 4.3 metres in L4 variants.
Internal Heights: Standard roofs through to high roof (H3) models offering over 2 metres of vertical cargo space.
Loading Heights: Lower in front-wheel drive versions, which is easy on the back when loading heavier items.
Rear/Side Access: Sliding doors up to 1.27 metres wide and more than 1.6 metres high in taller models ensure easy access, even with bulky parcels.
Matching the Master to Your Requirements
No two businesses carry the same cargo. For some, it’s delicate equipment; for others, it might be timber, cases, or a mobile workshop. The Renault Master’s diverse size options cater to these contrasting requirements:
Urban delivery vans often rely on the L1H1 or L1H2 for compactness and easy manoeuvrability.
Tradespeople and service engineers lean toward mid-length, mid-roof models such as L2H2 or L2H3 for a balance of loadspace and agility.
Long-distance logistics or those moving pallets and voluminous cargo gravitate towards L3H2, L4H2, or the L4H3 for absolute carrying power.
Let’s take a quick, scenario-based look:
Business Need
Suggested Variant(s)
Rationale
Tight urban routes
L1H1 / L1H2 (FWD)
Shortest length and roof, easier to park and access in busy settings
Standard local trade use
L2H2 (FWD)
Good legroom, generous height for tool chests, built-in modular system options
Oversized deliveries
L4H3 SW (RWD)
Longest and tallest, single rear wheel for maximum usable volume
Heavy payload/double rear tyre
L3H2 TW, L4H2 TW
Twin wheels support higher weights and towing capacity, with RWD stability
Door-to-door logistics
All, featuring wide and tall sliding/rear door options
Smaller Details Make a Big Difference
Having generous overall dimensions is hardly the whole story. The Renault Master’s design pays attention to the little things that can transform a van from a functional box to a daily convenience.
Loading Sill Height: On front-wheel drive, this is as low as 542 mm in the L3H3, while rear-wheel drive models are higher due to their chassis layout.
Door Apertures: Accessible rear doors across variants open wide for forklift access if needed.
Wheel Arch Clearance: While single rear wheel (SW) versions have a consistent floor width, twin wheel (TW) versions reduce that slightly but give added stability under heavy loads.
Ground Clearance: Higher ground clearance on certain rear-wheel drive models supports work on rougher surfaces, improving versatility out on site.
Little features like flattened wheel arch boxes, optional multiple sliding doors, and wide step areas can make the difference between a frustrating or a pleasurable loading experience.
Combining Space and Practicality
Driving a large van is about more than just cargo volume. Accessibility matters just as much, and in crowded city streets or narrow building sites, the Renault Master’s size options allow careful balancing of interior space with road-friendliness.
Lower roof models are less prone to height restrictions, such as those in parking garages.
Higher-roof versions allow standing room, useful during conversions as mobile workshops or campervans.
Thoughtful step heights help when entering and exiting the cargo area frequently through the day.
For those considering temperature-controlled conversions, service fit-outs, or people transport, these internal dimensions are a springboard to greater flexibility.
Fitting into Your Workflow
Selecting the right variant often comes down to practical day-to-day details, including:
Will your cargo benefit more from a lower floor or from maximised weight capacity?
Do you need just one sliding door, or would dual side access improve efficiency?
Is the main loading area tall enough for your largest pieces of equipment, or do you need to consider a higher roof?
Making the right decision at this stage helps avoid costly workarounds or vehicle replacements later on.
Putting the Master’s Dimensions to Work
The adaptability of the Renault Master, with its wide spread of sizes and configurations, supports thousands of businesses across Europe. Flexible interiors, varied access points, sensible heights, and rugged chassis options all come together to answer a huge range of logistical and practical questions.
Every measurement has been honed over decades to satisfy real-life commercial needs. Whether you are running a small urban fleet or organising carriage for long-haul routes, the right Renault Master in the appropriate size will always prove a dependable partner.
Understanding Front vs Rear-Wheel Drive Variants
When choosing between front-wheel drive (FWD) and rear-wheel drive (RWD) variants of the Renault Master, it’s important to understand how each configuration impacts performance and practicality. Front-wheel drive models offer a lower loading sill, making it easier to load and unload cargo, and typically provide better traction in slippery conditions due to the weight of the engine over the driven wheels. This makes FWD variants ideal for urban deliveries and routes with frequent stops. In contrast, rear-wheel drive versions are engineered for heavier payloads and enhanced stability under load, especially on uneven or challenging terrain. RWD models often feature higher ground clearance and a more robust chassis, making them the preferred choice for demanding commercial applications or when maximum carrying capacity is essential. By understanding these differences, you can select the Renault Master variant that best aligns with your operational needs.
Frequently Asked Questions (FAQ)
What are the main differences between front-wheel drive and rear-wheel drive Renault Master vans?
Front-wheel drive models offer a lower loading sill for easier access and better traction in slippery conditions, making them ideal for city driving and lighter loads. Rear-wheel drive variants are designed for heavier payloads, higher ground clearance, and improved stability on rough terrain, making them suitable for more demanding commercial tasks.
Which Renault Master variant is better for urban deliveries?
Front-wheel drive variants are generally better for urban deliveries due to their lower loading height, improved manoeuvrability, and enhanced traction in stop-and-go traffic.
Are rear-wheel drive Renault Master vans more suitable for heavy loads?
Yes, rear-wheel drive models are built to handle heavier payloads and provide greater stability when fully loaded, especially on uneven or off-road surfaces.
Does the drive type affect the van’s interior dimensions?
While the overall cargo space is similar, rear-wheel drive variants may have a slightly higher loading sill and different ground clearance compared to front-wheel drive models. Always check the specific dimensions for each variant to ensure they meet your requirements.
How do I choose the right Renault Master for my business?
Consider your typical load weight, driving environment, and access needs. If you frequently operate in urban areas with lighter loads, a front-wheel drive model may be ideal. For heavier loads and more challenging conditions, a rear-wheel drive variant is likely the better choice.
